PC to TV?


Reply
Thread Tools Search this Thread
Old 19-01-2010, 12:41
timpo
Inactive Member

Join Date: May 2007
Posts: 1,810

Hi guys, need some help if you can, i have movies on my PC and i want to watch them on my 46" Panasonic Plasma, it has spare HDMI slots, can anyone tell me how i connect from the pc to my tv, and what type of cable etc that i would need, i understand that i may have to do something about sound as well, my pc is approx 10mtrs from the tv.
All help greatly appreciated
timpo is offline   Reply With Quote
Please sign in or register to remove this advertisement.
Old 19-01-2010, 14:16
Chris Frost
Forum Member

Join Date: Jun 2003
Location: Cheshire
Posts: 6,462
This question comes up almost every week. It's been covered in quite some depth already.

Have a look through the past threads and you'll find all the info you could need and more about signal types, cable types, what signals work with which sockets, where to buy cables and adapters etc etc etc etc.

To save people time rewriting the same old stuff again here are some links to recent similar threads
http://www.digitalspy.co.uk/forums/showthread.php?t=1194699

http://www.digitalspy.co.uk/forums/s....php?t=1191659

http://www.digitalspy.co.uk/forums/showthread.php?t=1188913&highlight=laptop
Chris Frost is offline   Reply With Quote
Old 19-01-2010, 14:26
timpo
Inactive Member

Join Date: May 2007
Posts: 1,810
Ok mate thx, its the first time that i have used this section of the forums.
timpo is offline   Reply With Quote
Old 19-01-2010, 14:35
timpo
Inactive Member

Join Date: May 2007
Posts: 1,810
Ok looked at those, quite helpful but not overly imo, it looks like i need an DVI to HDMI cable to run from the PC to my TV? correct? but as this does not carry sound what will i need for the sound?


thanks again
timpo is offline   Reply With Quote
Old 19-01-2010, 15:30
Chris Frost
Forum Member

Join Date: Jun 2003
Location: Cheshire
Posts: 6,462
I'd say the links have been useful because you now know you need a DVI to HDMI cable.

Now, for sound it depends what audio outputs the laptop has, and also possibly which specific model 46" Pana you have, but as a rough guide...

From the user manual for a Panasonic TH46PZ85..


• When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal (HDMI1: use COMPONENT-AUDIO terminals / HDMI3: use AV3 audio terminals).
• Audio settings can be made on the “HDMI1 / 3 Input” menu screen. (p. 26)


So you want a lead from whatever audio output you have on the laptop (probably 3.5mm headphone jack) to red & white phono plugs that will connect to the telly.
Chris Frost is offline   Reply With Quote
Old 19-01-2010, 15:54
timpo
Inactive Member

Join Date: May 2007
Posts: 1,810
Sorry Chris i wasn't trying to be rude, i do appreciate the help...


So you want a lead from whatever audio output you have on the laptop (probably 3.5mm headphone jack) to red & white phono plugs that will connect to the telly.
Ok so i need another cable to run from my PC ( its not a laptop mate) alongside the DVI to HDMI cable? and the tv i have is pretty close to the one you mentioned its a, Panasonic TH-46PZ80 Plasma
timpo is offline   Reply With Quote
Old 19-01-2010, 16:41
Chris Frost
Forum Member

Join Date: Jun 2003
Location: Cheshire
Posts: 6,462
This has been mentioned before in previous threads, but I don't suppose a recap will hurt...

Sound over DVI from desktop graphics cards -
Ordinarily DVI doesn't carry sound.

However, there are some manufacturers putting audio through DVI from a linked sound card. It's worth checking if your graphics card supports this feature. If not, then stick with a separate lead for audio from the sound card.

Most desktop PC audio cards have analog audio outputs on 3.5mm jack sockets. Since the sound card will probably support some form of surround then there'll be two or possibly three sets of audio out jacks. The best thing to do is have a look at the card and also the sound card set-up software to see how the card can be configured.

Since your TV has a stereo input (R & W phono sockets) then what you want is a stereo signal from the sound card. This probably means disconnecting the PC speakers and possibly changing the sound card settings so it gives a stereo signal. Consult your manuals/manufacturer's web site for more info.

However the set up is done, the stereo sound for the TV will come out of the sockets marked for Front Left & Right.

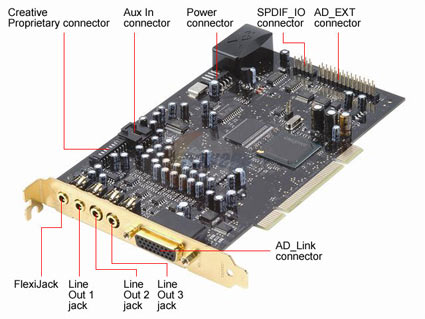

Here's some links to pictures showing how the sockets vary depending on the capabilities of the sound card. This is why it's important for you to check the capabilities of your own card!!!

Link 1

Link 2

Link 3

Link 4

Link 5


and of course not forgetting integrated audio found on motherboards instead of a separate sound card...

Link 6

Link 7
Chris Frost is offline   Reply With Quote
Old 19-01-2010, 17:07
currykev
Inactive Member

Join Date: Oct 2006
Location: No space here
Posts: 1,537
I put the movie on to a USB stick and this plugs into my dvd.
Or just burn it onto a 20p dvd disc.
currykev is offline   Reply With Quote
Old 19-01-2010, 17:48
timpo
Inactive Member

Join Date: May 2007
Posts: 1,810
Thanks Chris, the first link looks like my card, i'll have a look at everything you said.....
timpo is offline   Reply With Quote
Old 19-01-2010, 17:49
timpo
Inactive Member

Join Date: May 2007
Posts: 1,810
I put the movie on to a USB stick and this plugs into my dvd.
Or just burn it onto a 20p dvd disc.

Thanks mate, could do, but i was keen to try it the "difficult" way,,,,,
timpo is offline   Reply With Quote
Old 19-01-2010, 18:30
stvn758
Forum Member

Join Date: Sep 2005
Posts: 17,338
Can it run movies off SD cards, says it has an SD slot. Does that only work with pictures.
stvn758 is online now   Reply With Quote
Old 19-01-2010, 19:42
iangrad
Forum Member

Join Date: Mar 2006
Posts: 772
If your TV is a S , G or V series from 2009 onward then AVChd recordings playpack in stunning quality even from compact cameras such as TZ7 let alone full HD camcorders . Wont play "quicktime movies from low budget cameras though ( they would look poor on a full size screen anyway . Hope this helps
Ian
iangrad is offline   Reply With Quote
Old 19-01-2010, 22:34
timpo
Inactive Member

Join Date: May 2007
Posts: 1,810
Thx mate, but my TV is a 2008 model.
